Strip Doors

Strip Doors and Bulk PVC Rolls

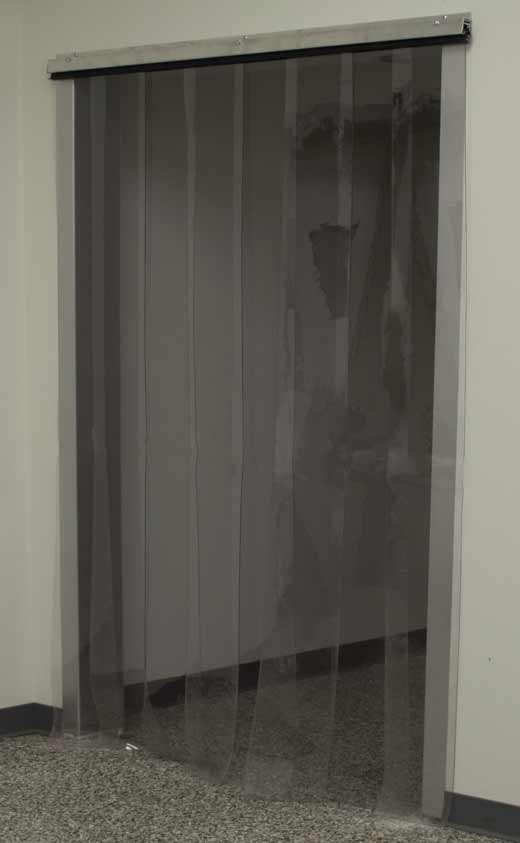

Eliason offers a full line of clear, flexible strip doors and mounting options. Strip doors provide maximum visibility for safety and offer an economical solution where thermal separation is required for energy conservation or employee comfort. They are also useful as secondary doors on the interior of a walk-in cooler or freezer, minimizing energy loss while the door is open for restocking.Door Body:

Clear flexible PVC strips are available in thicknesses ranging from .060″ to .160″ and in widths ranging from 6″ to 16″. Strips are available in both standard and USDA low-temp grades. Strip overlap is adjustable depending on the application.

Mounting Hardware:

Standard universal mounting bracket allows for strip door installation to the header (inside the opening) or on the wall above the opening.

Special mounting options are available including sliding wall mount brackets and brackets for mounting strip doors behind overhead door tracks. Contact Eliason for details.

Bulk Rolls:

Full rolls of strip material are also available – consult us for pricing and options.

Available Colors:

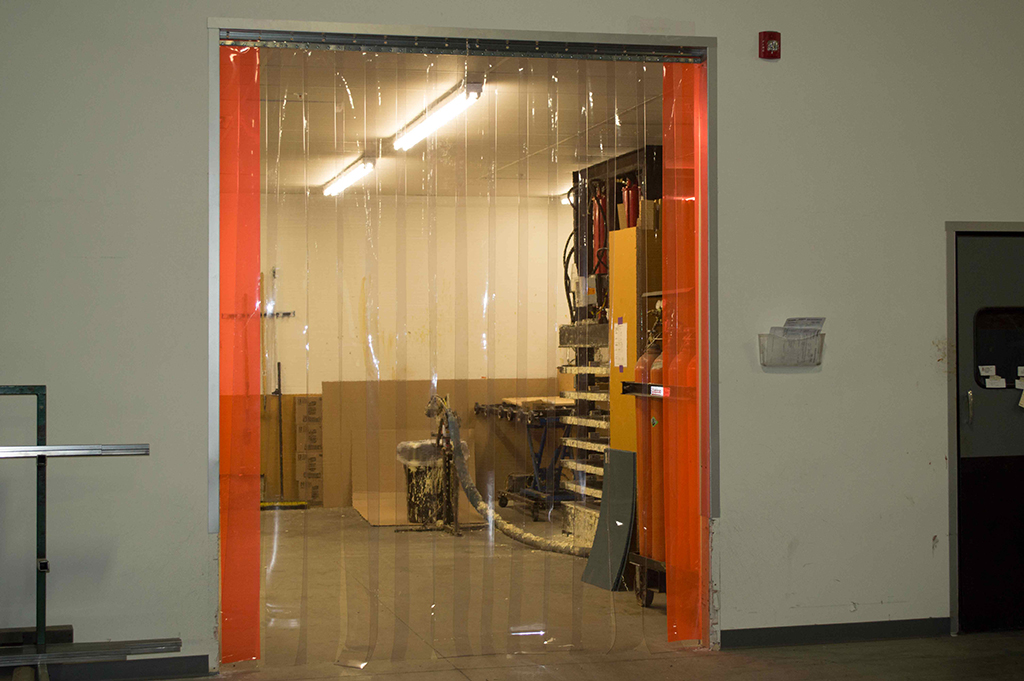

Bright orange safety strips are available to clearly mark the opening for pedestrians and man-ridden vehicle operators

Applications

• Walk-In Coolers and Freezers
• Cold storage facilities
• Dock doors
• Shipping and Receiving areas
• General industrial openings
